Flexible Packaging UV Laser

LT Series UV Laser Coder for Flexible Packaging

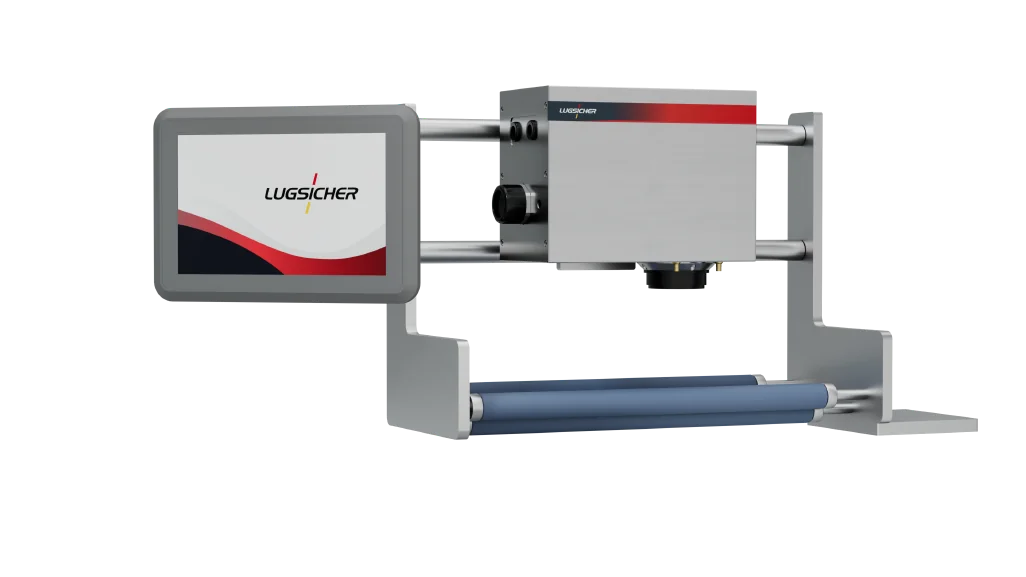

The LT Series applies date, batch and 2D codes to suitable flexible packaging films, including selected PET, BOPP and multilayer structures. For a TTO retrofit, test the original film and code readability, then check mounting space, trigger signals and the packaging cycle. The photo shows the LUZ105 marking head with a separate cooling unit.

Lugsicher LUZ105 UV laser marking head with separate cooling unit

Product Highlights

Designed for the application

A compact UV marking route designed to replace TTO on flexible packaging and roll-film lines.

Permanent, ribbon-free 355 nm UV coding

Produce permanent codes on suitable films without TTO ribbon changes; include extraction filters, cleaning and laser service in maintenance planning.

Compact installation for roll-film packaging equipment

Review the film path, marking window, working distance and access around the existing packaging machine before confirming the installation.

Up to 12,000 mm/s marking speed

Galvo speed is an optical reference. Confirm pack throughput using the real code content, film movement and time available for each mark.

QR, Data Matrix, barcodes, graphics and production data

Test the intended dates, batch data and 2D symbol size on production film, then check readability after normal packaging and handling.

UV laser coding on flexible packaging: start with the film

For date and batch coding on flexible packaging, the film sample is the starting point. Material names alone do not describe the complete structure, coating or printed area. Send the actual film used on your line, including the intended coding area, so the marking result can be assessed against your packaging requirements.

  • Identify the film layers, thickness and any surface treatment or printed background.
  • Provide the complete message: dates, batch numbers, text, graphics or variable 2D codes.
  • Describe the packaging cycle, target output, available coding window and installation space.
  • Include the required mark size and examples of acceptable contrast and readability.

UV laser TTO retrofit for flexible packaging lines

For a TTO retrofit on a flow wrapper or form-fill-seal machine, compare the finished mark and film condition through the full packaging cycle. Check print registration and the time available to mark each pack. Include ribbon changes, access for cleaning and maintenance, and integration work in the comparison.

The LT Series provides a compact route for roll-film coding projects. Our UV laser and TTO selection guide explains the engineering checks. For timing and machine signals, read the packaging-line synchronisation guide, then send your film and line details for an application review.

Roll-film date coding sample and LT specifications

Date-code sample on roll film

Date-code sample on roll film

A Lugsicher marking sample on roll film. Contrast and readability depend on the actual film and print area.

LT reference configuration

  • 5 W UV laser at 355 nm
  • Water cooling
  • 110 × 110 mm standard marking field
  • Photoelectric trigger and encoder inputs

What to verify in a film marking trial

Use the production roll and the full date, lot or 2D code at the intended line speed. Check the code after sealing and normal handling, including readability, condition of the film and placement after a stop and restart.

Application Check

Confirm the right configuration

Send the material, process, line speed, installation space and target result. Lugsicher can check product suitability before quotation.
