UV Laser vs TTO for Soft Packaging: Engineering Verification and Control Logic

For soft packaging lines, UV laser and TTO should be compared through materials, control timing, readability, maintenance and abnormal handling rather than only through unit price.

When a soft packaging line considers replacing or supplementing TTO with UV laser, the decision should be made from an engineering verification perspective. The comparison is not only about whether a code can be printed, but whether the mark can remain stable across materials, speed and production exceptions.

Define the coding target first

The project should clarify whether the code is plain text, batch number, expiry date, QR code, DataMatrix code or variable serial number. Human-readable text and machine-readable traceability codes place different demands on contrast and distortion.

A code that looks acceptable to an operator may still fail under a reader or vision inspection system.

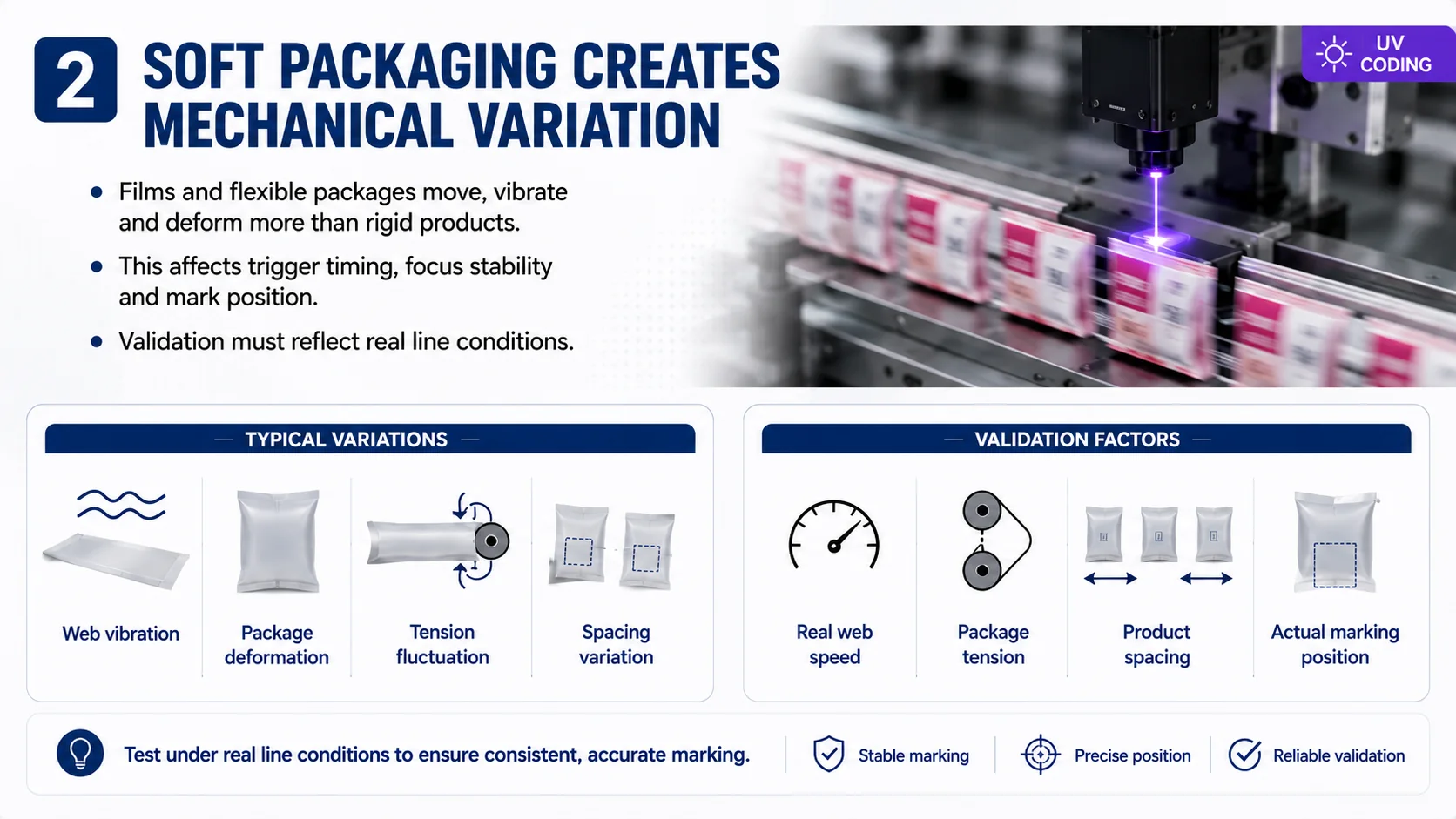

Soft packaging creates mechanical variation

Films and flexible packages move, vibrate and deform more than rigid products. This affects trigger timing, focus stability and mark position.

The validation should include real web speed, package tension, product spacing and the actual point where the mark will be applied.

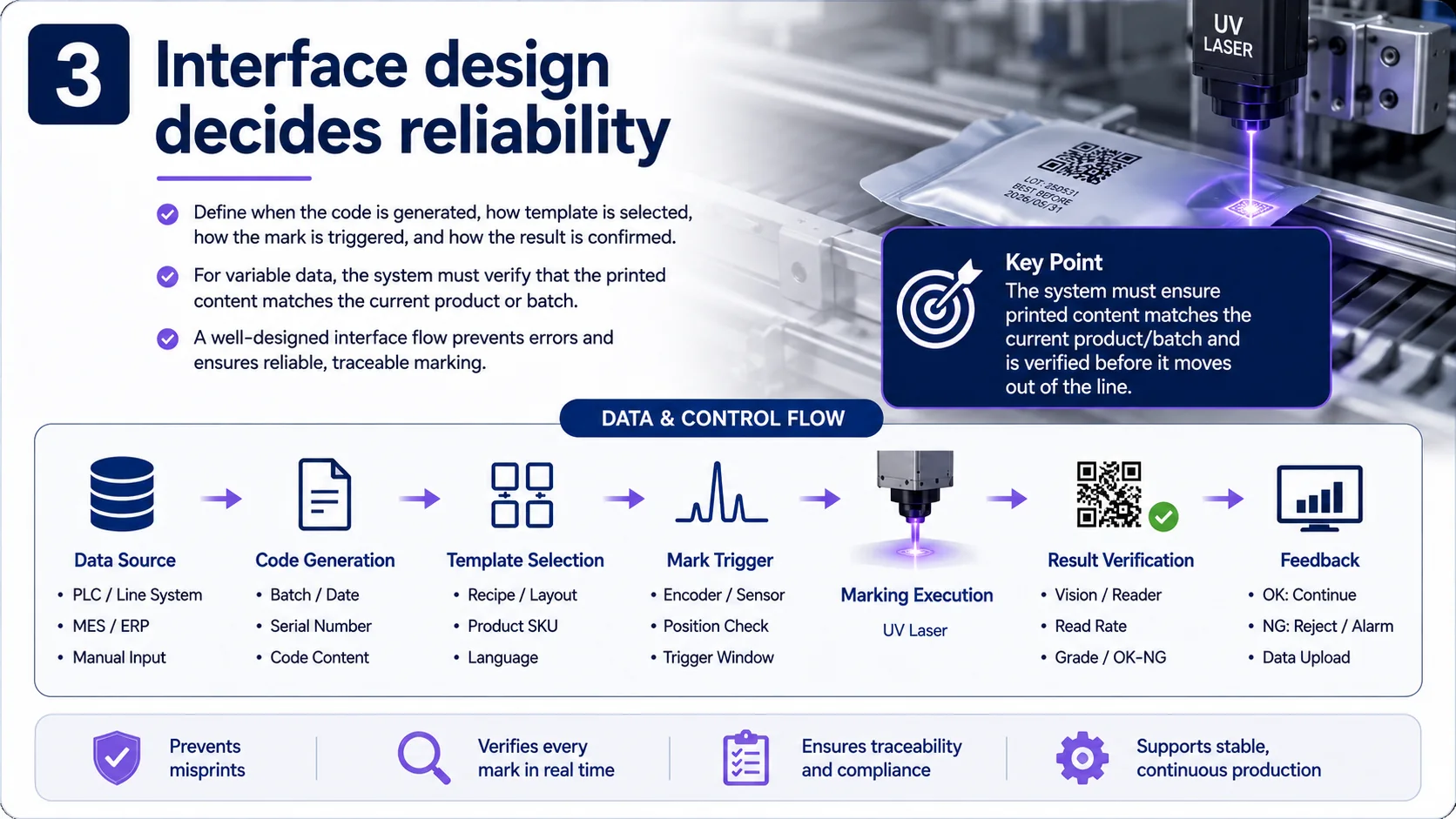

Interface design decides reliability

Data may come from a printer controller, PLC, MES or packaging-line system. The project should define when the code is generated, how the template is selected, how the mark is triggered and how the result is confirmed.

For variable data, offline template setup is not enough. The system must verify that the printed content matches the current product or batch.

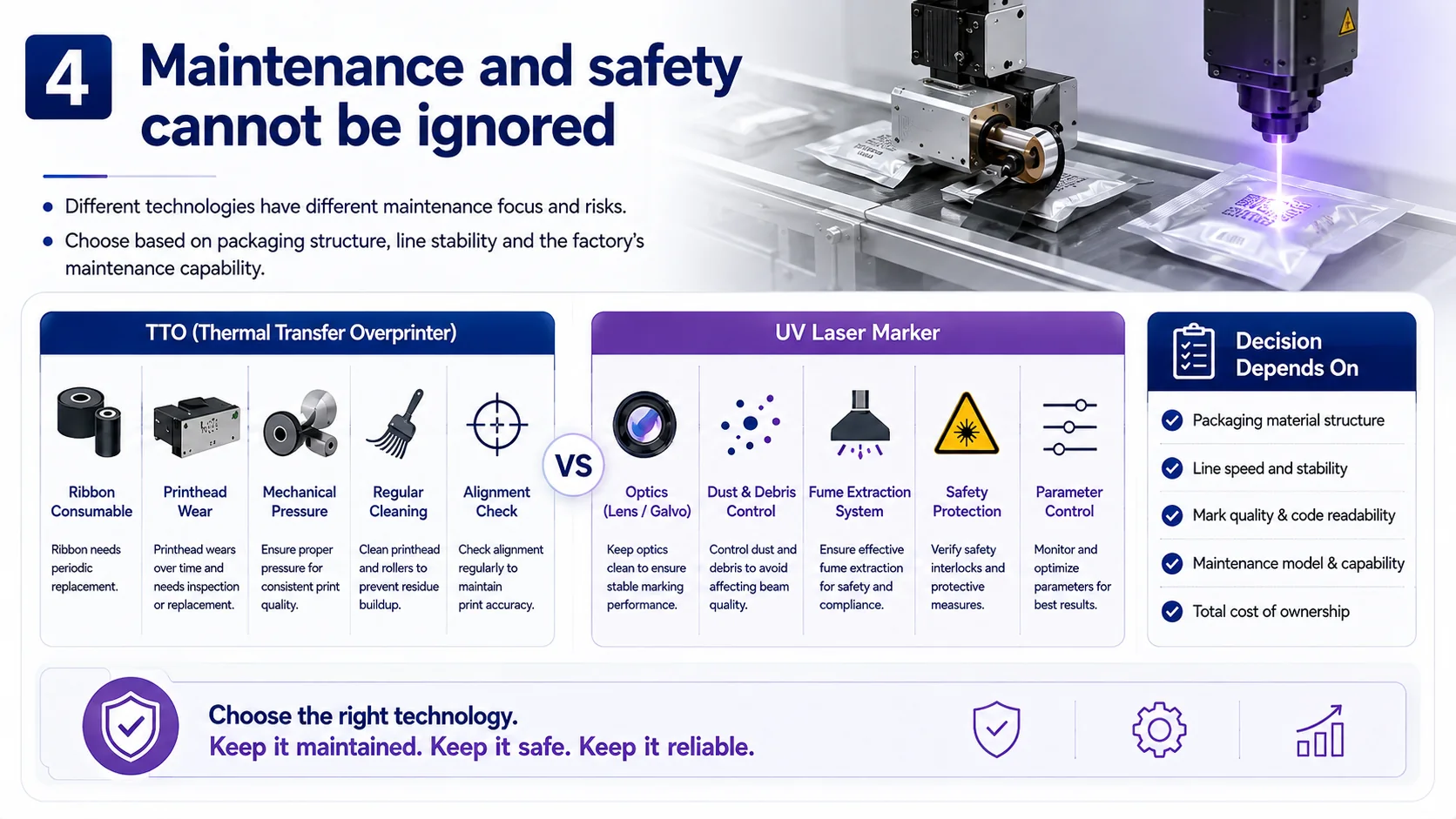

Maintenance and safety cannot be ignored

TTO maintenance centers on ribbon, printhead and mechanical pressure. UV laser maintenance centers on optics, dust, fume extraction, safety protection and parameter control.

The best choice depends on the packaging structure, line stability and the factory's ability to manage each maintenance model.

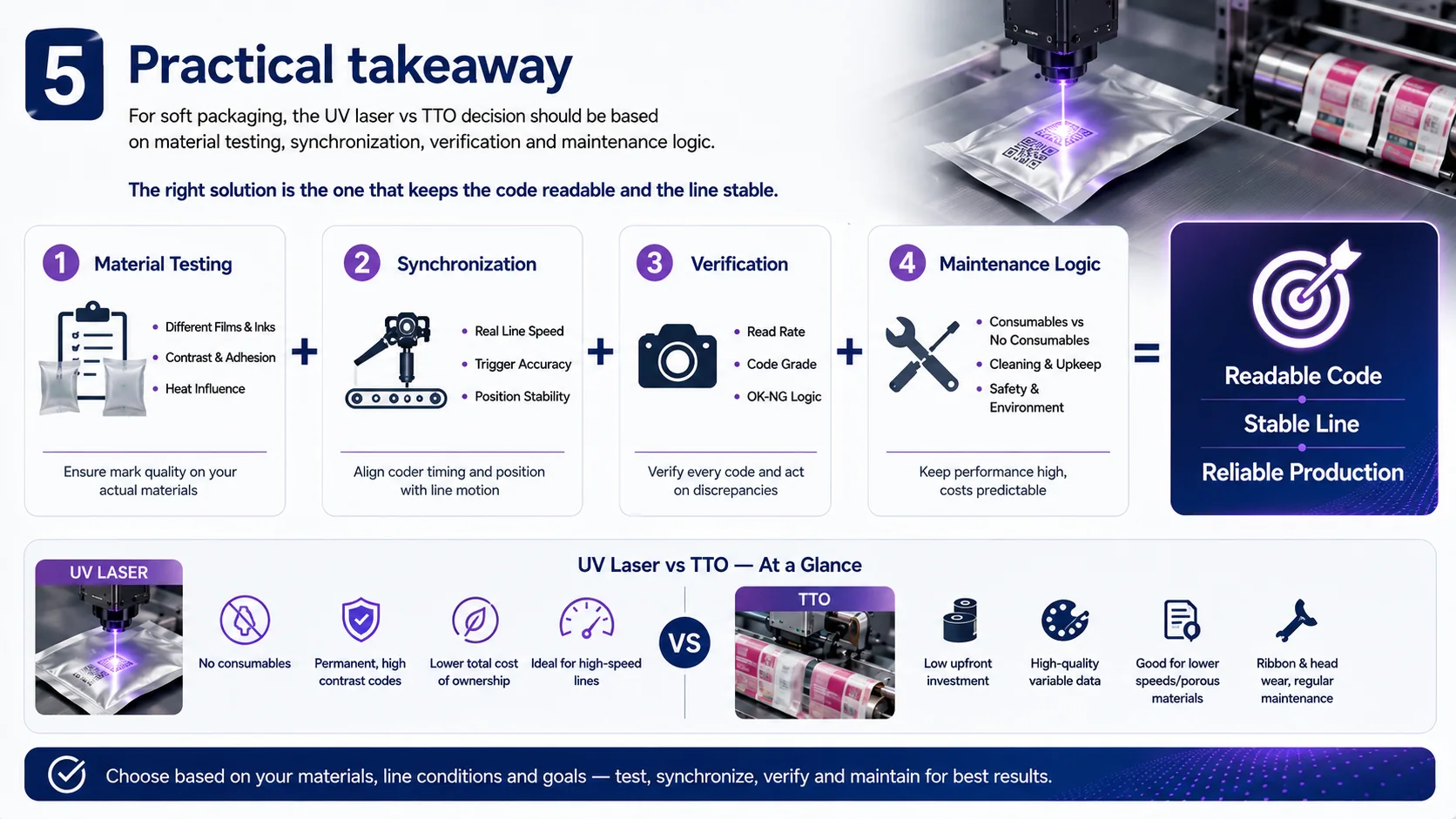

Practical takeaway

For soft packaging, the UV laser versus TTO decision should be based on material testing, synchronization, verification and maintenance logic. The right solution is the one that keeps the code readable and the line stable.
