Replacing TTO with UV Laser: Packaging-Line Integration Checklist

UV laser can replace TTO in selected packaging scenarios, but the decision should be based on material response, line synchronization, code quality and integration verification.

Thermal transfer overprinting is widely used on flexible packaging, but some projects start to evaluate UV laser because they want to reduce consumables, improve mark permanence or simplify maintenance. The key is not to ask whether UV laser is more advanced, but whether it fits the material, speed and control logic of the line.

Material response is the first boundary

UV laser has low heat influence compared with many thermal processes, but it still interacts with films, coatings, inks and laminated structures. The test should check whitening, darkening, deformation, pinholes, odor, contrast and code readability.

If the package structure changes across suppliers or batches, the test must include more than one sample type.

Material-response testing for replacing TTO with UV laser on packaging lines
Material compatibility, contrast, durability and supplier variation define whether UV laser can replace TTO.

Synchronization replaces ribbon management

TTO projects often focus on ribbon width, printhead pressure and temperature. UV laser projects shift the focus toward trigger accuracy, encoder synchronization, marking-window length and product spacing.

The code must be generated, marked and verified inside the available window. If the line speed is high, trigger delay and product movement become decisive.

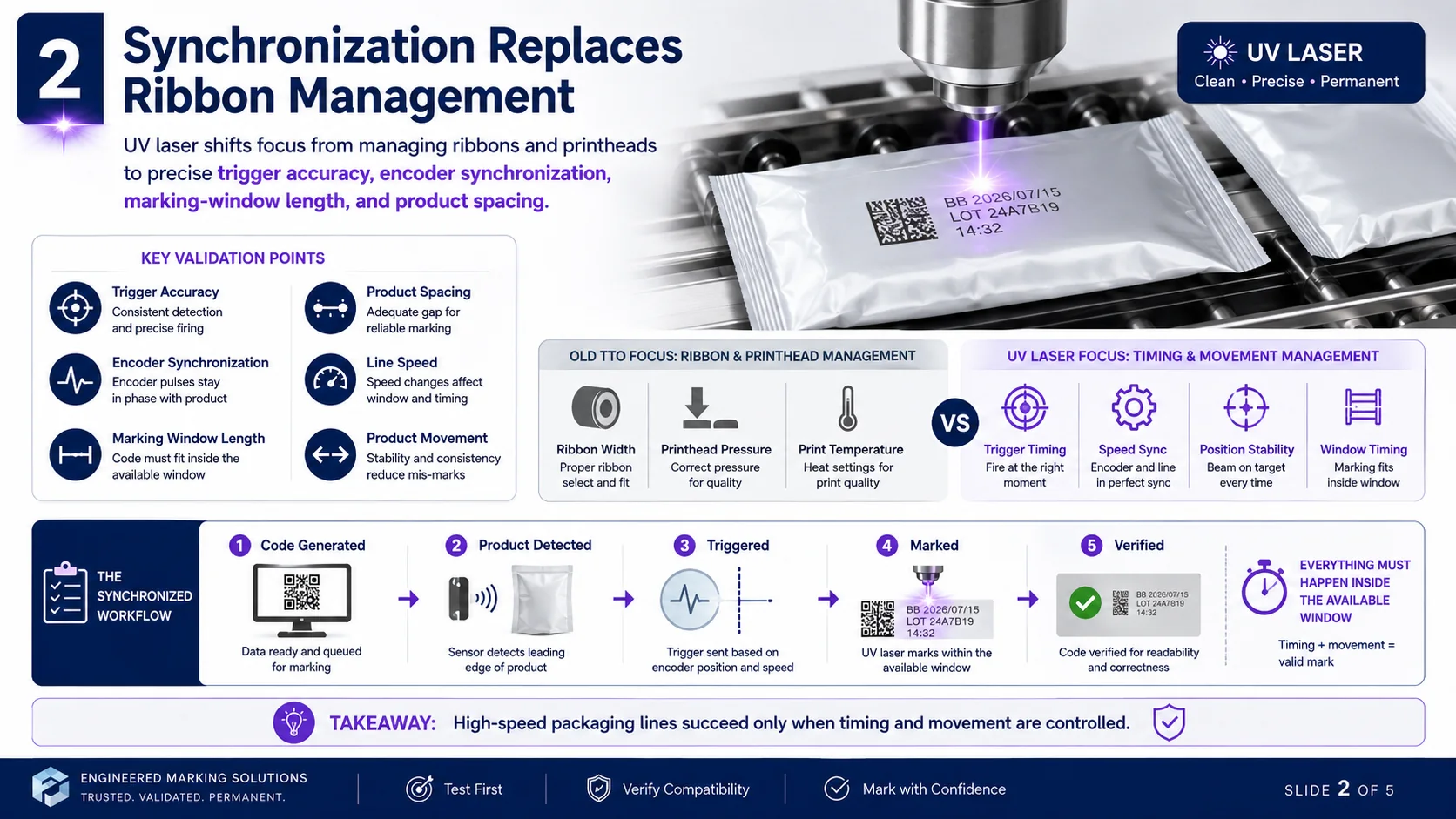

UV laser synchronization with trigger timing, encoder position, speed and packaging movement
UV laser replacement shifts control toward trigger accuracy, encoder synchronization, movement and marking-window timing.

Verification should include reading and inspection

The project should verify not only text visibility but also QR-code grade, contrast, distortion, edge quality and readability after packaging movement. If the code enters a traceability system, reading and data upload should be tested together.

UV laser replacement is successful only when the marked code remains readable under production conditions.

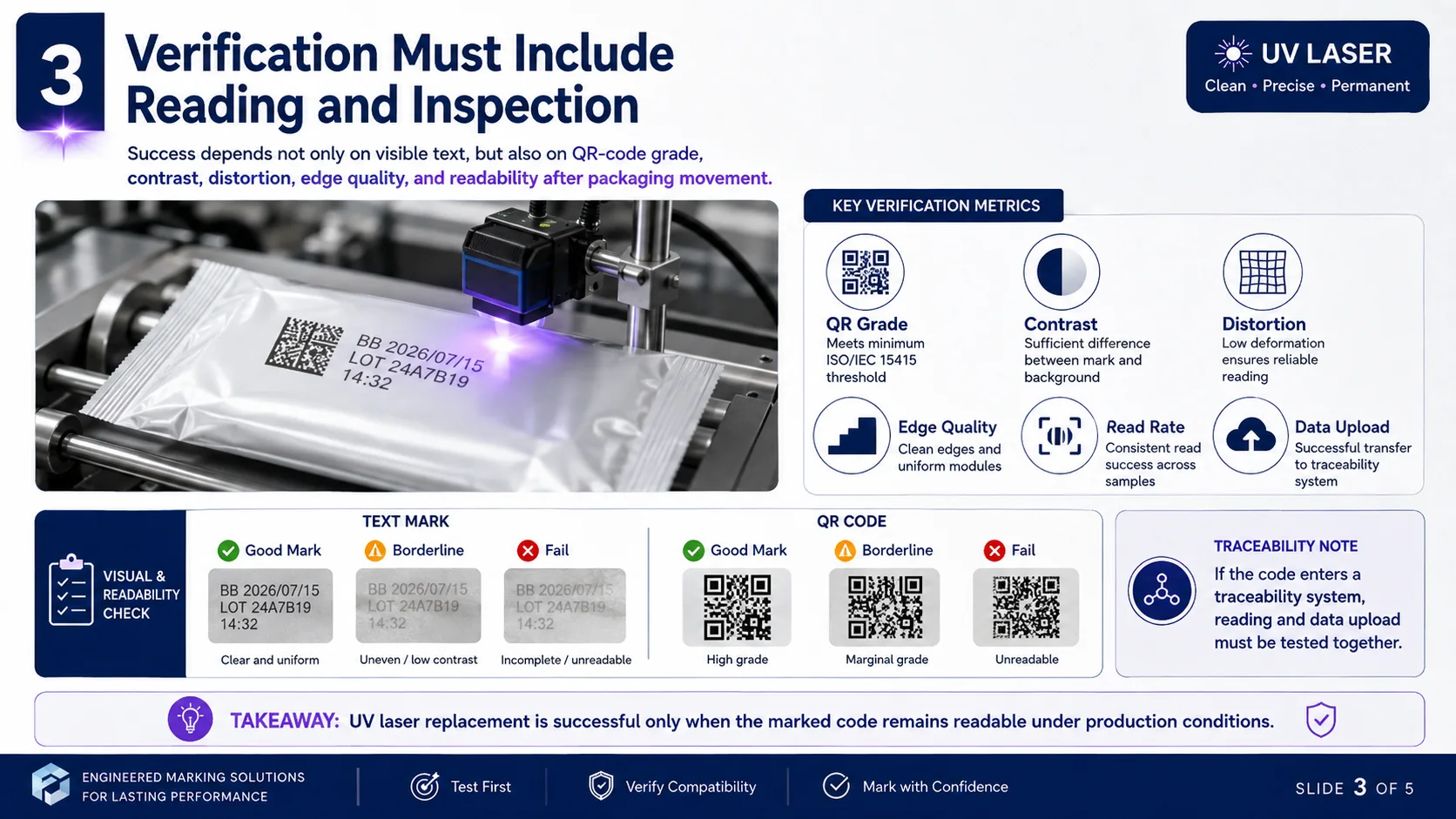

Reading and inspection verification for UV laser codes on moving packaging
Verification should cover code grade, contrast, distortion, edge quality, read rate and traceability data upload.

Cost comparison should include the whole system

UV laser may reduce ribbon and mechanical wear, but it adds requirements for fume extraction, optical maintenance, safety enclosure and integration design. The correct comparison includes consumables, downtime, cleaning, rejection loss and traceability risk.

A sample test alone cannot represent the full cost boundary.

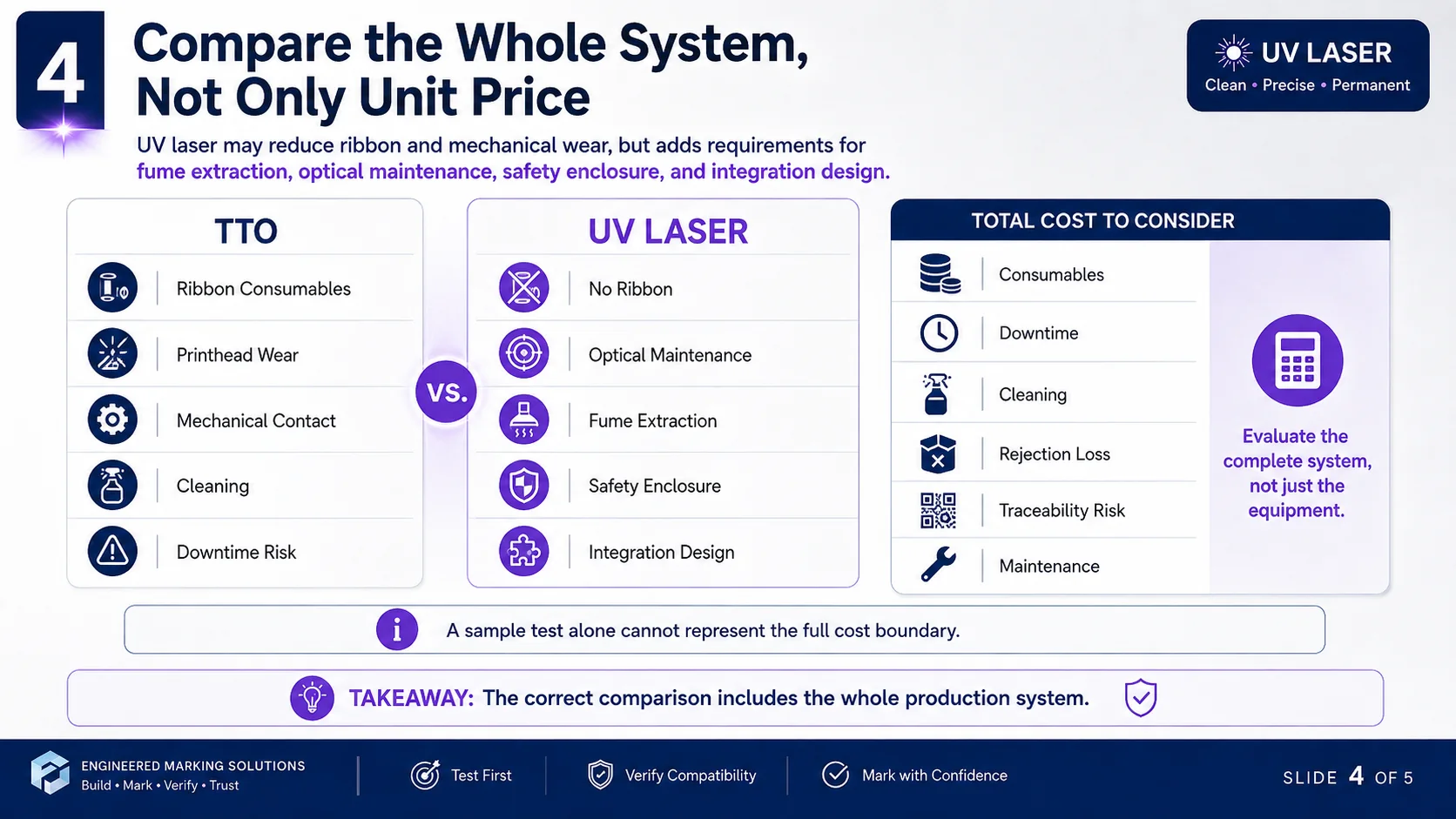

Whole-system cost comparison between TTO and UV laser packaging-line marking
Compare consumables, downtime, cleaning, rejection loss, traceability risk, maintenance and integration—not unit price alone.

Plan the UV laser retrofit around the packaging machine

After material testing supports a UV laser option, review the actual installation point. Available space, film support, access for maintenance and the distance to downstream inspection all influence the layout. A successful laboratory sample does not establish that a replacement can fit or operate reliably on the existing packaging machine.

  • Installation: record the mounting envelope, marking surface, film path and focus position. Include guarding, extraction connections and safe access in the layout.
  • Triggering and positioning: identify the product sensor or print registration signal, encoder source and marking window. Test changes in speed, spacing and film tension.
  • Signals and data: agree which controller selects the job, supplies variable data and handles ready, fault and mark-complete signals. Define behaviour after stops and job changes.
  • Site acceptance: run the agreed materials and code content under representative conditions, including restarts, missing triggers and failed reads. Record acceptance criteria and operator responses.

Compare the LT Series UV laser with the available installation space and evaluate LPV500 code inspection against the agreed checks. For the earlier technology decision, see the separate UV laser versus TTO comparison.

Practical takeaway

UV laser can be a strong replacement for TTO in the right packaging scenario, but it should be evaluated as a complete production-line system rather than a simple printhead substitution.

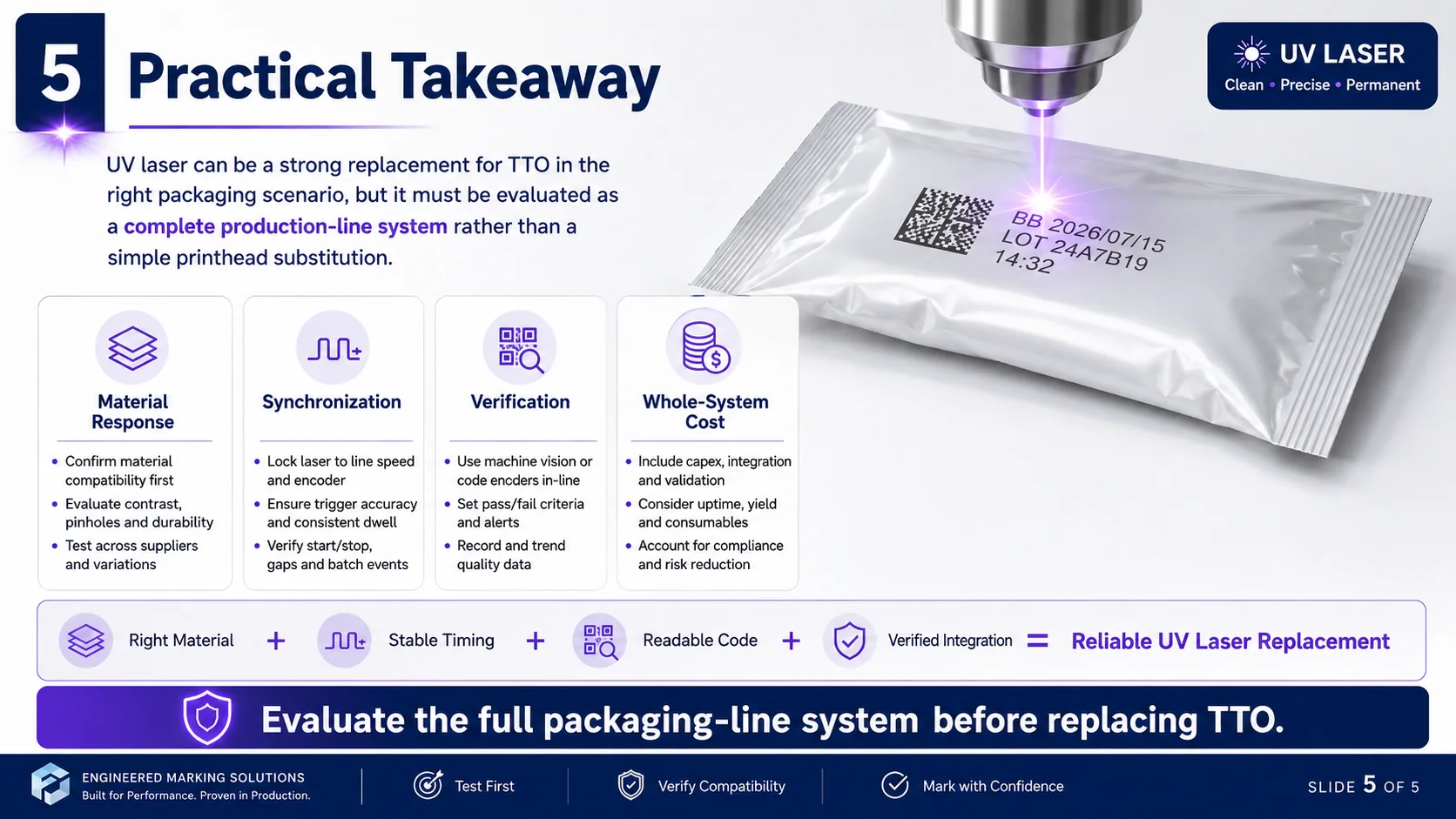

Practical evaluation of UV laser as a complete production-line replacement for TTO
A reliable UV laser replacement combines material fit, stable synchronization, readable verification and whole-system evaluation.
